ILC and ILA DPD

Studio 2.2.5 exposes ILC linearization beside PA Training/Testing and ILC-DPD / Ideal benchmark beside DPD Training/Testing. First train a usable forward PA surrogate on the paired dataset. ILC is an input-waveform controller, not an alternative forward PA identifier.

The two outputs

1. ILC-DPD (ILA) is a causal memory polynomial you can apply to a new input. On a bounded prefix of the training split, ILC learns an input u that makes the bound surrogate approach G*x. ILA fits Phi(y_ILC/G) w ≈ u_ILC, then copies the postdistorter coefficients into the predistorter. The test split never supplies fitting samples.
2. ILC Ideal DPD is a separate, explicitly labelled test-waveform reference. It uses repeated feedback on that same test waveform through the selected surrogate. It is not a transferable model, proof of a global optimum, hardware evidence or a fair substitute for held-out model generalization. Its score may stop short of the target when the plant saturates or the update cannot improve.

The constant target gain G retains the existing OpenDPD gain rule. The complex inverse learning gain is estimated from training-only input/output of the bound surrogate. Each plant replay resets model state at the same dataset segment boundaries; final-segment padding is excluded from the controller's pooled error. The update is:

e[k]   = G*x - PA(u[k])
u[k+1] = clip(u[k] + alpha[k] * inverse_gain * e[k], peak_limit)

The surrogate replay uses the selected accelerator; polynomial fitting and coefficient arithmetic use CPU complex128 for numerical stability. MPS hardware validation remains pending. The implementation uses a constant gain inverse, not a frequency-dependent BLA inverse. Each rejected update halves the learning step; only lower-error candidates are accepted. The algorithm reports target reached, iteration limit, no improving step, or improvement below tolerance. Cancellation is checked between plant evaluations.

Starting hyperparameters

Setting	Default	Effect
Iterations	30	Upper bound on waveform updates
Learning gain	0.5	Initial correction size; backtracking can reduce it
Target pooled NMSE	−45 dB	Stop threshold; no guaranteed attainability
Peak factor	1.5	Peak cap relative to the PA model's training-input peak; values above 1 permit extrapolation
Backtracking steps	6	Maximum halvings per update
Minimum improvement	0.001 dB	Stop when progress becomes negligible
Fit samples	32,768	Leading training samples used by ILC and ILA
MP envelope order count K	7	Powers 0 through K−1
MP memory depth Q	5 samples	Past input context
SVD relative cutoff	10⁻⁶	Truncate poorly conditioned fitting directions

These are conservative starting settings, not universally optimal values. Reduce the peak factor and input level when extrapolation or saturation dominates; reduce learning gain when many steps backtrack. Increase model order/depth only when independent validation supports it. The public app caps K/Q at 9/16, iterations at 60, fit samples at 32,768 and backtracking at 6.

Inspect and reproduce

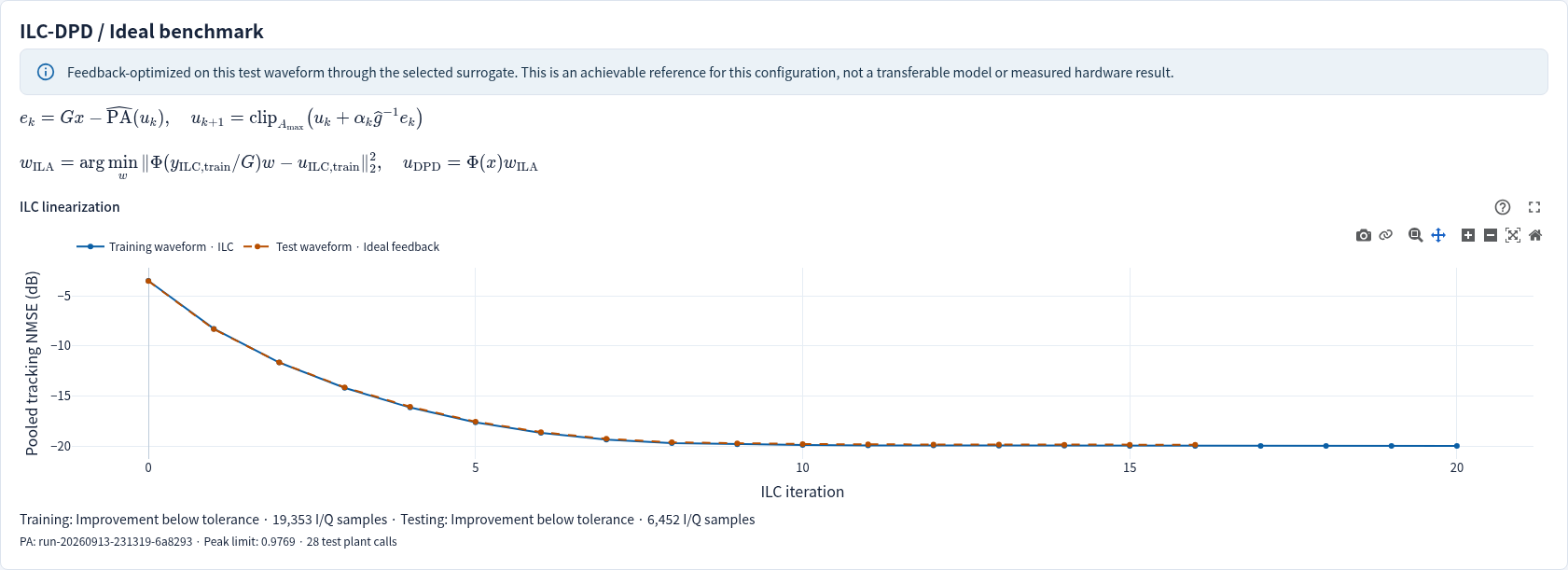

Results show the two ILC convergence curves, stopping reasons, sample counts, peak cap and PA checkpoint identity. Metric definitions render in LaTeX. Main result metrics score the fitted DPD; the Ideal reference is a separate baseline under the same calculation method. PSDs put Ideal and fitted signals into their respective PA Input and PA Output panels. No score definitions or frozen legacy protocols change.

Artifacts include ilc.json, training waveforms in ilc-training.npz, ilc-benchmark.json, ilc-ideal-test.csv, the transferable checkpoint and ordinary result/plot files. Re-evaluating a run does not rewrite its training data. Testing with another PA surrogate creates a new result and re-estimates the learning gain from training data for that surrogate.

The framework follows Schoukens, Hammenecker & Cooman, Obtaining the Preinverse of a Power Amplifier Using Iterative Learning Control (author preprint); this release uses an ILA postinverse fit after waveform learning. It does not reproduce the paper's frequency-dependent learning filter or claim its experimental performance.
