Virtual PA Library

The Virtual PA is the simulated device under test. The learned PA model is a neural or other fitted surrogate trained later on its input/output pairs. Keeping these roles separate makes the provenance of every PA output explicit.

Workflow

  1. Generate a PA Input Dataset, x, in Signal Generator. It is not a complete training dataset. Download its I/Q CSV and metadata JSON independently.
  2. Open PA Library and select a mathematical model. The technology labels describe illustrative applications, not device calibrations or foundry models.
  3. Select a saved input. Adjust sliders or numeric fields; selecting a control highlights the matching variables in the displayed equations, and vice versa.
  4. Click Simulate PA output. Inspect input/output AM/AM, AM/PM, envelope and spectrum, plus dynamic states where applicable. Output CSV, paired CSV and simulation metadata JSON are independent downloads.
  5. Click Create paired dataset & train PA. This is the only new GUI step that registers the generated pair as trainable data. Then train the PA surrogate and use it as the reference for DPD training.

The diagram separates dataset making from model training. It stays compact while scrolling and expands for inspection. Existing paired datasets bypass generation and Virtual PA simulation, complete the entire dataset-making group, and open PA Training directly. Training checkmarks require actual successful runs, matching dataset versions and a matching PA reference. Returning to Signal Generator restores the selected input instead of silently starting over.

Model families

Category Virtual PA Illustrative application and behavior
Reference Linear reference Gain and fixed phase; alignment and pipeline checks
Static Solid-state soft limiter Rapp AM/AM saturation with adjustable knee; CMOS, SiGe or GaAs radio/array element
Static Solid-state AM/AM + AM/PM Rapp saturation plus saturating phase rotation; handset or WLAN CMOS/GaAs HBT experiments
Static Satellite traveling-wave tube Saleh rational amplitude/phase laws; TWTA/transponder experiments, including overdrive roll-off
Electrical memory Wideband electrical memory A separable fifth-order memory polynomial with decaying complex taps; LDMOS/GaN class AB bias/matching memory
Electrical memory Lagging-envelope cross memory Adds current-input × delayed-envelope-power terms; the causal lagging subset of GMP
Slow dynamics GaN trapping, heat & supply memory Asymmetric trap capture/release, temperature-dependent emission, effective heating and normalized IR drop for pulsed/TDD/radar studies
Architecture Doherty-inspired two-path PA Soft-limited carrier plus thresholded peaker, with path magnitude/phase mismatch
Architecture Envelope-tracking supply PA A finite-speed supply tracker changes saturation headroom, with supply floor, swing, IR drop, recovery and supply-sensitive AM/PM

Defaults are illustrative. Different technologies can share a behavioral model; select a family by the effect being studied. The Doherty construction does not solve an impedance inverter or predict actual load modulation/efficiency. Effective temperature, activation energy and normalized supply states are not a calibrated transistor-physics simulation.

Equations and units

The complete equations, parameter bounds, defaults, explanations and symbols come from opendpd/core/virtual_pa.py and are included in each frozen simulation. The UI renders parameter tokens as controls; it does not evaluate arbitrary code. For example, the Rapp helper is

R(x; G,s,p) = G x / [1 + (G |x| / s)^(2p)]^(1/(2p)).

G is small-signal envelope gain, s is the soft-limiter ceiling and p controls knee sharpness. The AM/PM extension uses phi(r) = phi_inf r² / (r² + b²). Every parameter control participates in the implemented equations.

All waveforms are complex baseband, with normalized amplitude. The sample clock comes from x; RF carrier frequency remains metadata. No implicit resampling, output normalization, gain fitting or added output noise takes place. Simulate nonlinear spectral regrowth with adequate sample-rate headroom in the input; this discrete-time envelope model does not recover aliased out-of-band products.

Time constants are entered in microseconds and converted by 10^-6 in the displayed discrete-time pole, a = exp(-1 / (Fs tau_us 10^-6)). Electrical-memory depth is an integer number of samples; its physical span is M / Fs. Dynamic states start at zero before the first sample, and effective temperature starts at ambient. The thermal state is an illustrative single-pole response to normalized envelope power. The GaN release time follows

tau_e(T) = tau_e,25 exp[(Ea/kB) (1/(T_C + 273.15) - 1/298.15)].

Increase capture duration to observe slow recovery/settling. The UI reports when selected slow time constants exceed the available input duration. Long memory can persist across a later split guard: one continuous synthetic capture does not constitute independent measurement conditions.

Data, diagnostics and provenance

  • One output for every input sample; both exports use float32 I/Q values with enough CSV digits to round-trip exactly. Output-only columns are I,Q and paired columns are I_in,Q_in,I_out,Q_out.
  • Preview metrics use every exported sample: RMS, sample-power PAPR and RMS gain. Welch spectra use at most 2,048 samples per segment, 50% overlap, density scaling, and no detrending. Amplitudes are not calibrated watts or dBm.
  • Envelope, state and AM/AM–AM/PM plots select up to 1,536 regularly spaced time samples for display. They do not resolve every waveform peak. Phase points with negligible input amplitude are excluded; no gain/phase fitting is applied.
  • Changing input or parameters invalidates the current output and downstream pairing/training selection. Invalid numeric drafts cannot be simulated.
  • Saved pa_simulations/vpa-<sha>/ records bind input bytes, full parameters, sample rate and simulator source hash. They contain the model description and formulas, output hash and diagnostic arrays. Output bytes are checked before download or pairing. Pairing consumes a frozen simulation, not a hidden rerun.
  • The paired manifest includes both input/output hashes, waveform configuration, Virtual PA formula/parameters, source hash and physical_measurement: false. The ordinary contiguous split protocol remains unchanged. Fractions apply to N - 2 × guard, with rounding remainder assigned to testing.
  • Data stays private unless the user separately initiates a dataset contribution. Public contributions require human merge review; contact emi.lab@outlook.com.

Modeling references

The simplified families above draw on these behavioral-model concepts; they are not claimed to reproduce the measured devices or complete models in the papers.

Verification

Numerical tests check every parameter's actual effect, formula/control binding, causality, zero input, deterministic replay, analytic gain/saturation, memory-tap response and physical-time consistency. API tests cover input-only isolation, exact pairing, hashes, frozen parameters, unchanged splits, real CPU PA/DPD jobs, feature gating and public-session isolation. Frontend tests cover linked controls, invalidated previews, explicit pairing and existing-dataset bypass. The browser script scripts/verify_signal_generator.mjs exercises real downloads and workers.

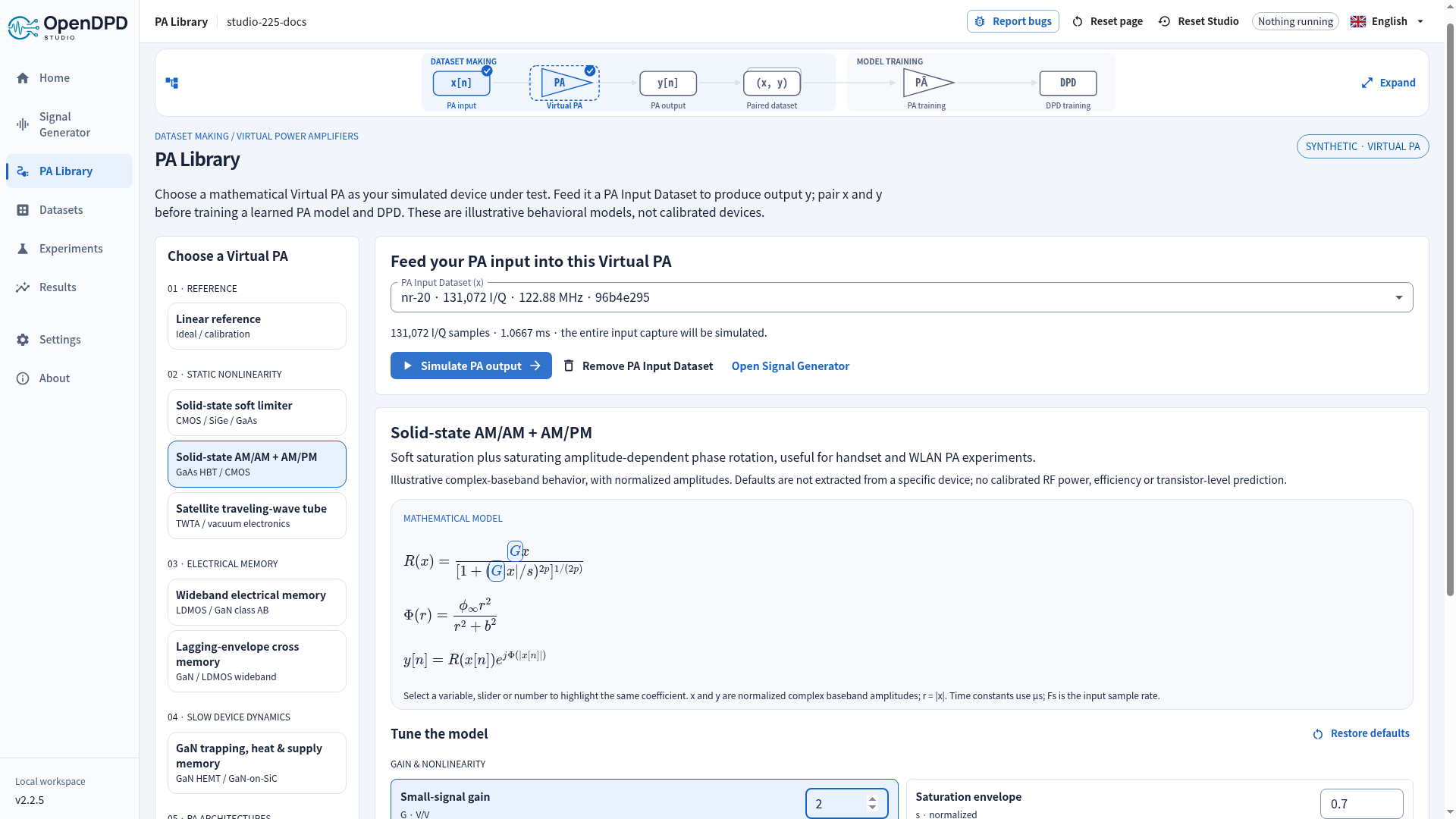

Studio 2.2.4 preview

Virtual PA formula controls

The output preview draws PA Input and PA Output PSDs separately on matching initial dB scales. Independent controls enlarge or zoom each location. The paired dataset remains synthetic when used to learn a PA surrogate or DPD model. See signal-chain spectra.
